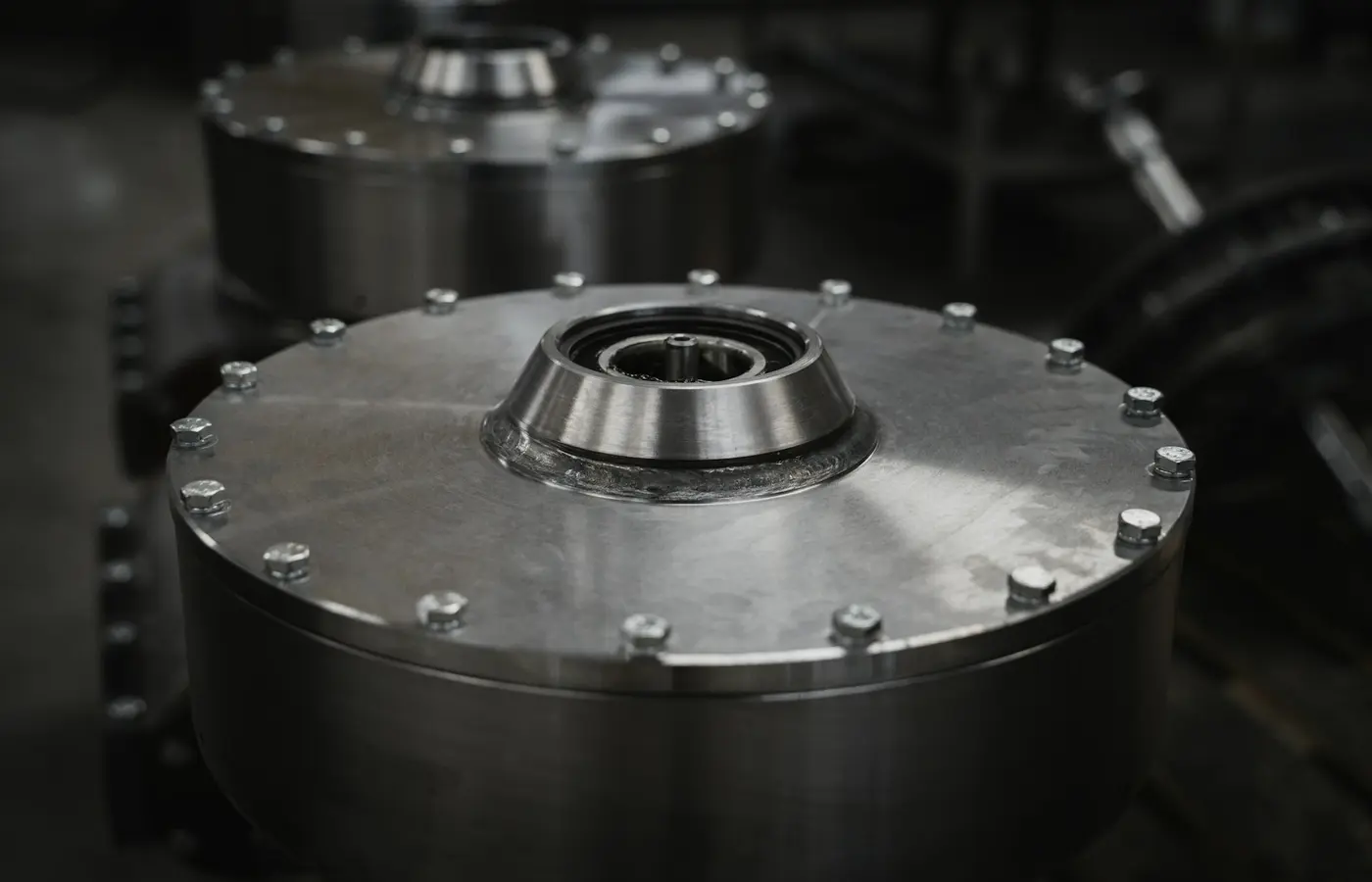

A shaft coupling should be selected from the drivetrain duty, not from nominal torque alone. Rigid couplings suit shafts that remain accurately aligned; flexible couplings accommodate defined movement and alter torsional behavior; fluid couplings transmit power hydrodynamically and therefore introduce operating slip. The correct choice depends on what the connected motor, gearbox, and driven machine actually do during starting, normal operation, overloads, reversals, and maintenance.

Start With the Shaft Connection Duty

Before comparing industrial coupling types, define the connection rather than starting with a preferred coupling family. A coupling is part of a system containing at least two shafts, their bearings, hubs, keys or locking devices, guarding, and the connected equipment. Its acceptable performance depends on all of them.

Collect the following inputs before requesting a quotation or selecting a catalog model:

  • Driving and driven equipment, such as motor-to-gearbox, gearbox-to-conveyor, or motor-to-pump connection.
  • Continuous transmitted torque, expected peak torque, startup torque, and any documented jam or overload torque.
  • Normal operating speed, maximum transient speed, variable-frequency-drive speed range, starts per hour, reversals, and cyclic loading.
  • Shaft diameters, usable shaft lengths, keyway dimensions where applicable, hub envelope, shaft separation, and axial movement limits.
  • Installed alignment targets and expected operating movement from thermal growth, structural deflection, settlement, or bearing play.
  • Required torsional stiffness, damping, backlash limit, and any known torsional-vibration concern.
  • Ambient temperature, contamination, washdown, corrosion exposure, hazardous-area requirements where applicable, and guard constraints.
  • Access for alignment, inspection, lubrication, replacement of flexible elements, and hub removal.

A motor nameplate alone is not enough. Rated motor power may establish a normal running torque estimate, but it does not establish acceleration duty, impact loading, a stalled conveyor condition, or a variable-speed operating range.

For a rotating shaft, torque can be estimated from confirmed transmitted power and speed:

[ T = \frac{9550P}{n} ]

where (T) is torque in N·m, (P) is power in kW, and (n) is rotational speed in rpm. This calculation applies to the stated power and speed condition. It does not replace checks for motor starting torque, inertia, process upsets, gearbox limits, or coupling-specific service factors.

Use the equipment drawings, motor and gearbox data, control settings, load profile, alignment records, and maintenance history to establish these values. If the duty includes high speed, frequent starts, major inertia, reciprocating loads, or repeated torque reversals, the coupling manufacturer or a qualified drivetrain engineer should review the application-specific data.

How Rigid Couplings Transmit Torque and Where They Fit

A rigid coupling joins two shafts without an intended flexible element between the hubs. Common forms include sleeve, split, clamp, and flanged arrangements. Torque is transmitted through the selected shaft attachment method, which may involve keys, clamping friction, interference fit, or another manufacturer-defined arrangement.

Because the coupling itself does not accommodate meaningful angular, parallel, or axial shaft movement, a rigid coupling is generally appropriate only when the shafts can be accurately aligned and their relative position remains controlled during operation. Typical examples can include short shaft extensions within a machine frame or equipment assemblies designed as a closely controlled unit.

Three alignment conditions matter:

  • Angular misalignment: the shaft centerlines intersect but are not parallel.
  • Parallel or offset misalignment: the shaft centerlines are parallel but displaced from one another.
  • Axial displacement: the shafts move toward or away from each other.

A rigid coupling does not remove the consequence of these conditions. Misalignment can introduce bending loads, increase bearing loading, create vibration, and concentrate stress in the shafts or hub connection. Thermal growth deserves particular attention where one machine runs hotter than the other or where shafts are mounted on different structures.

Rigid couplings can be a practical choice when accurate alignment is achievable, the supporting structure is stable, and there is no expected relative movement that requires accommodation. They are not a low-cost substitute for alignment control. Confirm the manufacturer’s requirements for shaft preparation, bore tolerance, keyway configuration, fastener tightening, and hub installation. A clamped hub, keyed hub, and interference-fit hub may have materially different installation and removal requirements even when their nominal bore is similar.

How Flexible Couplings Handle Misalignment and Torsional Loads

Flexible couplings use an engineered compliant feature to allow a defined amount of shaft movement while transmitting torque. The compliant feature may be an elastomeric element, metallic disc pack, gear teeth, grid spring, bellows, or universal-joint arrangement. These mechanisms do not behave alike.

The key selection question is not simply whether a coupling is “flexible.” It is which type of flexibility the drivetrain requires and what consequences that mechanism has for torsional stiffness, damping, backlash, bearing reaction loads, speed capability, and maintenance.

Elastomeric-element couplings

Elastomeric couplings use a polymer element between metal hubs or jaws. Depending on the design and element compound, they can provide torsional compliance and damping while accommodating specified shaft misalignment. They are often considered where vibration isolation, moderate shock moderation, and straightforward element replacement are important.

The element is also a service item. Its suitability depends on temperature, oil exposure, chemicals, ozone, contamination, and cyclic torque. Do not assume that two elastomer elements with a similar geometry have the same temperature or chemical resistance. Confirm the exact compound and the supplier’s stated operating limits.

Metallic disc-pack and diaphragm couplings

Disc-pack and diaphragm couplings use thin metallic elements arranged to flex. Their design can provide a torsionally stiff connection with no elastomer element and, in many configurations, no lubrication requirement. They may be considered where torsional precision, high-speed capability, or resistance to certain environmental exposures is needed.

However, the permitted angular, parallel, and axial misalignment depends on the exact disc arrangement and coupling configuration. Excessive operating misalignment can increase cyclic flexing and reaction loads. Confirm the model-specific data rather than treating “metallic coupling” as a complete performance description.

Gear and grid couplings

Gear couplings transmit torque through meshing teeth and typically accommodate movement through tooth geometry and hub-sleeve motion. Grid couplings use a flexible metallic grid between grooved hubs. These types can be suitable for certain higher-torque or shock-loaded duties, but their behavior is strongly affected by lubrication, seals, alignment, enclosure condition, and maintenance practice.

Where lubrication is required, include lubricant type, fill condition, seal inspection, relubrication access, and contamination control in the selection. A coupling with adequate nominal torque capacity may still be unsuitable if routine service cannot be performed safely and consistently.

Universal-joint arrangements

Universal joints are used where shafts operate at an angle, but they require careful kinematic review. A single universal joint operating at an angle does not generally produce constant output angular velocity. The resulting speed variation can matter in precision or vibration-sensitive machinery. Double-joint arrangements can reduce this effect when correctly configured, but geometry and phasing remain design requirements.

A useful general comparison is available in this coupling selection overview, but final values for torque, misalignment, speed, and bore capacity must come from the data sheet for the exact candidate model.

Misalignment capacity is not an installation target

Catalog misalignment limits describe a boundary under stated conditions; they are not necessarily a recommended installed condition. Operating near a maximum published value can reduce margin for thermal movement, assembly variation, bearing wear, or foundation settlement.

Set alignment targets using the coupling manufacturer’s installation guidance and the expected operating movement. Measure alignment after installation and, where process temperature changes machine position materially, evaluate alignment at stabilized operating conditions according to the equipment manufacturer’s procedure.

When a Fluid Coupling Is the Different Solution

A fluid coupling is not simply another flexible shaft coupling. It transfers power hydrodynamically, usually through an impeller, a turbine, and a working fluid in an enclosed housing. There is no fixed mechanical connection between the input and output during normal torque transmission.

This mechanism means the output speed is lower than the input speed while torque is being transmitted. The difference is called slip. The amount of slip, the transmitted torque, and the heat generated depend on the specific coupling design, fill condition, input speed, driven inertia, and load characteristic.

Fluid couplings may be considered where controlled acceleration, moderated starting behavior, or reduced transmission of some torsional disturbances is useful. Examples can include certain conveyor, fan, pump, crusher, or high-inertia duties. They should not be described as zero-slip devices or as universal drivetrain protection.

Before specifying a fluid coupling, verify:

  • Rated power and input-speed range for the exact model and fill condition.
  • Starting frequency, acceleration duty, driven inertia, and load torque curve.
  • Permissible steady-state slip and the resulting heat dissipation requirement.
  • Fill medium, fill quantity, seals, enclosure arrangement, and temperature limits.
  • Safety provisions for rotating equipment and any hot external surfaces.
  • Compatibility with the motor, gearbox, driven machine, and process control strategy.

A fluid coupling may moderate the torque delivered during acceleration, but it does not automatically protect every component during a jam, overspeed event, or control fault. Protection depends on the total drivetrain design, including motor controls, torque-limiting arrangements where fitted, gearbox ratings, process behavior, and maintenance condition.

Verify Torque, Speed, Bore, and Dynamic Limits Before Ordering

Once a coupling family is suitable in principle, verify the exact model in a defined sequence.

First, establish continuous torque at normal operating conditions. Then separately identify peak conditions: motor starting, acceleration, emergency stop, reversing, process impact, jam torque, and torque ripple from the driven equipment. If a service factor is used, apply it only as defined by the selected manufacturer. It is not a substitute for identifying the actual transient loads.

Second, check operating and transient speed. Maximum coupling speed may be affected by balance condition, hub geometry, bore size, keyway arrangement, spacer configuration, and guarding. For variable-speed drives, use the highest possible operating speed, including any permitted overspeed condition.

Third, confirm the shaft connection details. These include:

  • Finished bore diameter and tolerance.
  • Shaft keyway dimensions, if used.
  • Shaft length available for the hub.
  • Hub-to-shaft attachment method and required surface condition.
  • Minimum hub wall thickness or restrictions associated with large bores and keyways.
  • Axial retention method and assembly clearance.
  • Required spacer length or distance between shaft ends.

Fourth, review dynamic limits. Torsional stiffness and damping may affect resonance, control response, gear noise, and torsional vibration. Backlash may matter in positioning, indexing, reversing, or load-sharing applications. A coupling that is mechanically strong enough may still be unsuitable if its torsional properties are incompatible with the machine.

For high-speed trains, reciprocating equipment, large inertia, or torsional-vibration-sensitive machinery, request a model-specific engineering review. The review should use the actual shaft train, inertias, gear ratios, operating speeds, and load spectrum rather than generic coupling-family descriptions.

Check Environment, Guarding, Alignment, and Maintenance Access

Environmental conditions often decide between otherwise acceptable coupling options. State the actual exposure: indoor dry service, abrasive dust, oil mist, direct washdown, outdoor weather, salt exposure, high ambient temperature, or chemical contact. Verify the limits for the exact element, lubricant, seal, coating, and enclosure rather than relying on the metal hub material alone.

Guarding is also part of the selection. Rotating shafts and couplings require appropriate guards designed for the machine and site requirements. Guard removal and maintenance must follow site lockout/tagout procedures, isolation of electrical and mechanical energy sources, and any manufacturer-specific instructions. A guard should not interfere with coupling movement, retain excessive heat, or prevent necessary inspection without a defined maintenance procedure.

Plan access before ordering. Confirm that personnel can reach hub fasteners, inspect flexible elements or seals, perform alignment measurement, and remove the coupling or replace the element without dismantling unrelated equipment. For lubricated designs, verify access to fill, drain, and inspection points.

After installation, record the as-installed alignment condition, hub attachment details, tightening method where specified, and any baseline vibration or temperature readings collected under the site’s normal maintenance program. These records support later troubleshooting, but they do not replace manufacturer-defined inspection criteria.

Use a Duty-Based Selection Rule for Gearbox and Shaft Connections

For a gearbox or other shaft connection, use a rigid coupling only when alignment, thermal movement, and structural position are controlled sufficiently for a non-flexing connection. Choose a flexible coupling when the system requires defined accommodation of misalignment or a particular torsional response, then compare exact designs for stiffness, damping, backlash, environmental resistance, reaction loads, and maintenance burden.

Consider a fluid coupling only when hydrodynamic starting behavior and normal operating slip are acceptable to the process. Its selection must be checked against the actual motor speed, load curve, inertia, starting frequency, heat dissipation path, and supplier performance data.

Before purchase, require a model-specific submittal showing the coupling designation, rated conditions, permitted bore and keyway configuration, maximum speed, allowed misalignment by type, installation instructions, material or element identification where relevant, maintenance requirements, and any applicable inspection or test documentation. Final selection should be approved against the complete drivetrain duty, not a nominal torque figure alone.

Frequently Asked Questions

Can a flexible coupling correct poor shaft alignment?

No. A flexible coupling can accommodate only the movement and misalignment stated for its exact design. It does not correct a soft base, distorted machine frame, worn bearings, thermal-growth problem, or inaccurate installation. Align the equipment to the manufacturer’s target and retain margin for expected operating movement.

How do you calculate the torque required for a motor-to-gearbox coupling?

For a known operating point, calculate torque using (T = 9550P/n), with power in kW and speed in rpm. Then check the actual shaft location: torque changes across a gearbox according to the ratio and efficiency. Add separate checks for motor starting, acceleration, overload, reversing, and jam conditions; normal running torque alone is insufficient.

Does a fluid coupling eliminate torsional shock in a drivetrain?

No. A fluid coupling can alter acceleration and torque transmission characteristics, but its effect depends on the exact unit, fill, speed, inertia, and load curve. It does not eliminate the need to check gearbox, motor, driven-equipment, and control-system limits.

Should a coupling be selected using its maximum misalignment rating?

No. Treat a published maximum as a limit under stated conditions, not as the desired installed alignment. Select and align the coupling so normal operation, thermal movement, and foreseeable assembly variation remain within the manufacturer’s recommended operating range.
